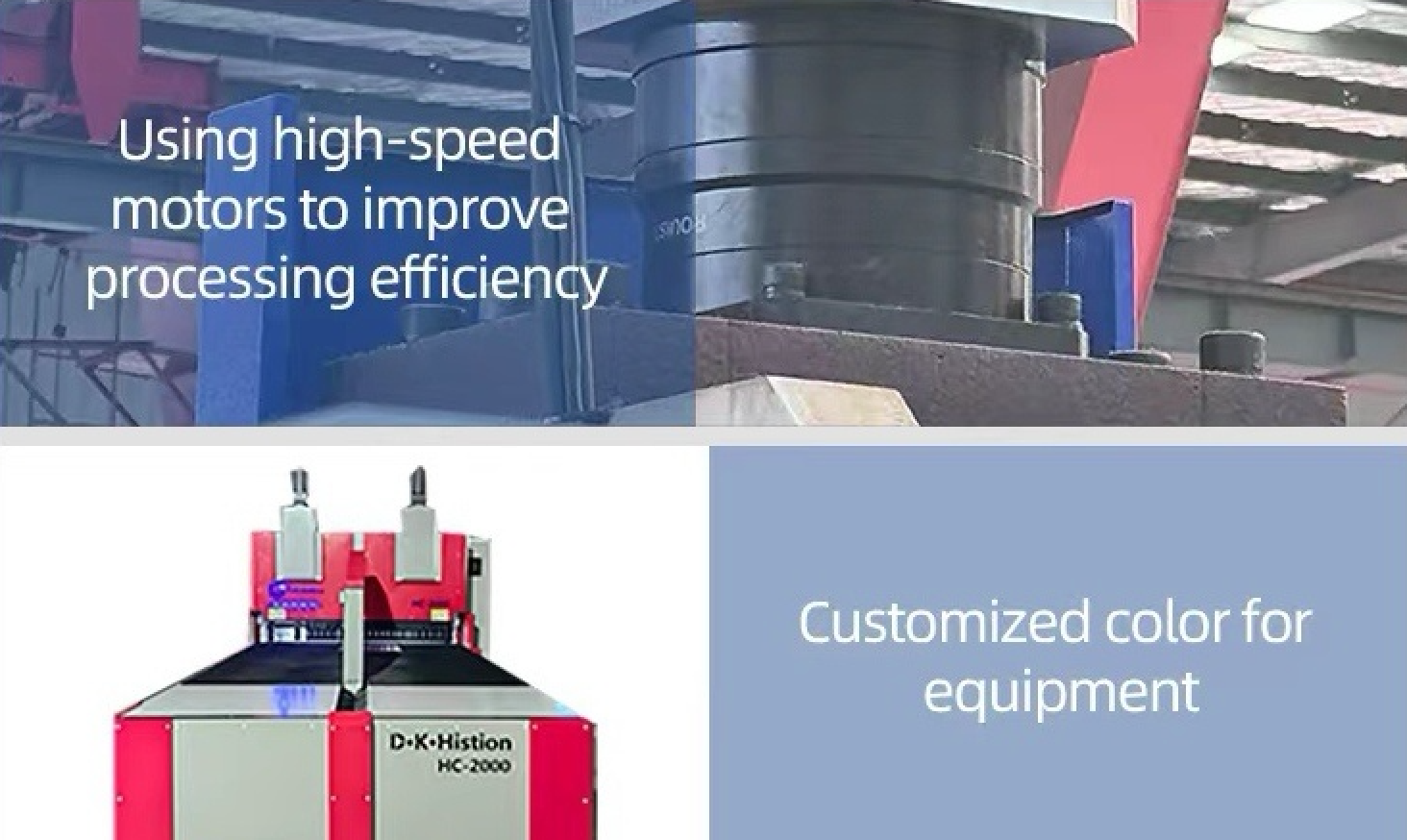

Intelligent CNC Panel Bending Center Flexible Bender for Complex Metal Panel Shape Forming
Product Advantages
- High-strength Q235B/Q335B welded frame ensures stability under high-tonnage impact
- Double L-shaped guide positioning with front material pushing improves forming accuracy
- Automatic lubrication system with oil shortage alarm reduces maintenance frequency
- Quick-clamp quick-release tool change with reinforced C-axis rotation improves changeover efficiency
- Self-developed control system ensures precision and reliability
Product Functions
- Automatic feeding positioning: Pressure arm clamping with precise feeding
- Multi-axis linkage control: 13-axis synchronized coordination
- Graphical error detection programming: Input dimensions, auto-programming with result preview
- Cloud operation interface: Real-time equipment status monitoring
- Automated production line interface: Connectable to loading/unloading robots
- Partial load visualization: Real-time force display for timely adjustment
- Self-diagnosis function: Reduces maintenance downtime
Technical Parameters
| Model |
HC-3200 |
HC-3200P |
| Feeding structure |
Pressure arm type |
Pressure arm type |
| Minimum internal dimensions for quadrilateral forming |
180mmx280mm |
180mmx280mm |
| Bending height |
170mm(customizable) |
170mm(customizable) |
| Average power |
About 4.0KW |
About 4.5KW |
| User operating environment |
Operation system above Win7 |
Operation system above Win7 |
| Maximum bending thickness |
Cold plate 1.5mm |
Cold plate 2.0mm |
| 304 stainlesss steel 1.0mm |
304 stainlesss steel 1.5mm |
| Number of axles |
16 |
16 |
Control System
The bending center control system employs a top-level computer numerical control (CNC) system integrated with motion control cards. The CNC system features an intuitive human-machine interface and supports graphical programming. With exceptional position calculation capabilities, it significantly enhances production efficiency and precision in automated manufacturing. The motion control cards support 24-axis operation, with an expandable capacity up to 64 axes, and utilize EtherCAT bus control for high-precision motion control.
Operation Interface
The interface is simple, easy to learn, with excellent human-computer interaction designed for efficient operation.
Industrial Applications
Widely used in file cabinetry, electric cabinet, aluminum veneer wall industry, stainless steel kitchenware industry, refrigeration equipment industry, chassis and cabinet industry, laboratory construction industry, metal door industry and related metal fabrication sectors.
Material Compatibility
Typically processes carbon sheet, aluminum sheet, stainless steel sheet, and galvanized sheet materials.
Shipping & Delivery
Delivery time: 40 working days after deposit confirmation. Transportation methods: Sea freight or land transport available, handled by professional freight companies. Full function testing conducted before shipment. Export documents include commercial invoice, packing list, certificate of origin, etc.
Payment Terms
Payment methods: T/T (wire transfer) or L/C accepted. USD or RMB settlement supported. Proforma invoice provided for customer payment arrangement.
Frequently Asked Questions
| Question |
Answer |
| Can you arrange samples for me? |
Of course, we provide free samples according to customer requirements. |
| What is the warranty period for the machine? |
The warranty period for the machine is one year. Lifetime maintenance and upgrade services are provided after the warranty period. |
| What is the MOQ of the machine? |
The minimum order quantity is 1 set. |
| Are all the machines standard? |
No, customization is available. We can manufacture non-standard machines according to customer requirements. |
